Vortex™ 3010 XP Snow Blower
Three-Stage
Item#:
31CH5EP9B66
price.from
$ 2,599.00
price.msrp
Vortex™ 3010 XP Snow Blower
Three-Stage
Item#:
31CH5EP9B66

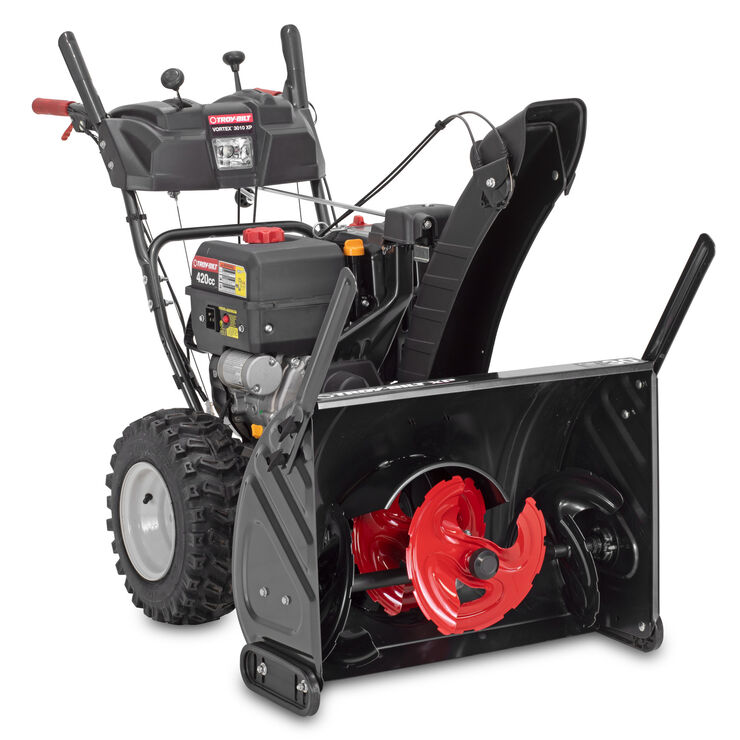

A durable, center-mounted steel accelerator helps tackle drifts and icy conditions with the three-stage design of the Vortex™ 3010 XP. Equipped with a 420cc Troy-Bilt engine, 30 in. clearing width, heated handgrips, and Touch N’ Turn™ power steering, you'll be prepared to meet winter's toughest challenges. Just One Hand™ operation allows adjustment of the chute controls without disengaging the drive, including a quick change to the snow discharge height with the remote pitch control lever.
- Three-stage design with durable, center-mounted steel accelerator spins 10X faster than the augers to break down and quickly clear heavy, wet snow
- 30 in. clearing width and a 20 in. intake height powers through up to 12" of snow* and designed to throw up to 40' of snow

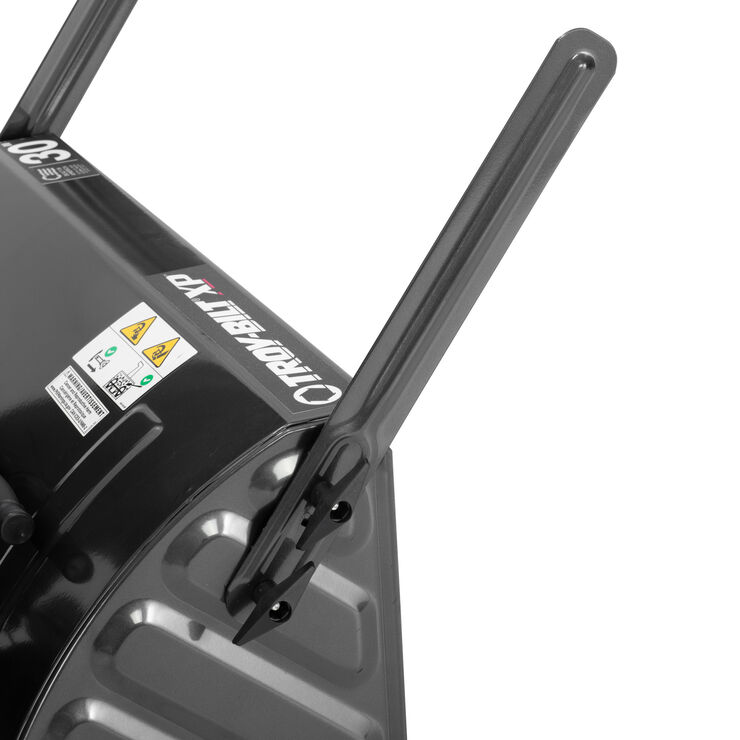

- Drift cutters help break through tightly packed snow and adjust with no tools required
- Powered by a Troy-Bilt 420cc OHV engine equipped with push-button electric start and with a large 5qt. fuel tank for long run times
- Heated hand grips help provide comfort in cold weather
You May Also Like
Vortex™ 3010 XP Snow Blower Features
3-Year Limited Warranty
3-year limited warranty for extended peace of mind
Three-Stage Technology

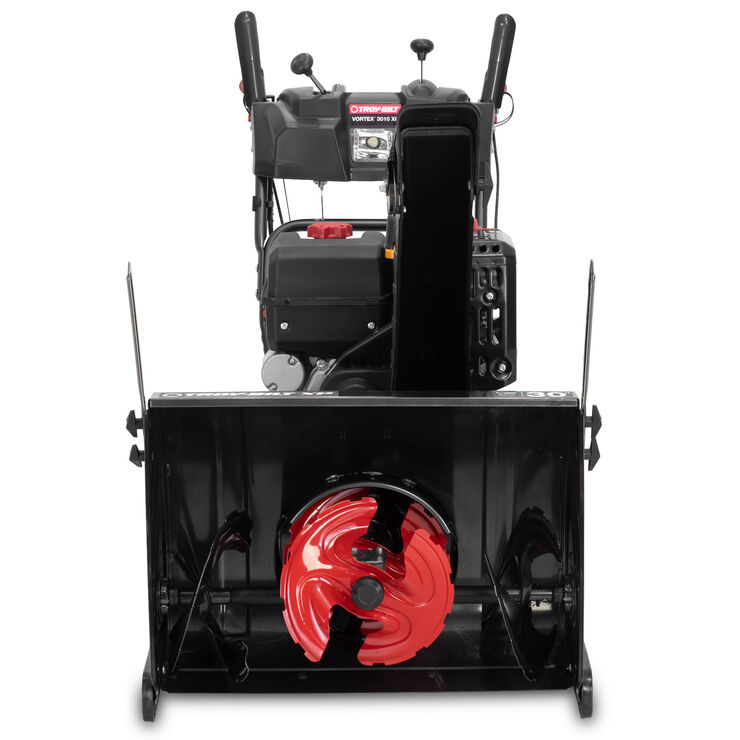

Three-stage technology with 12-inch serrated steel augers, 12-inch impeller, and a 12-inch accelerator that spins 10 times faster than the augers to break down and quickly clear heavy, wet snow.
Powerful,
Dependable Engine XP Series

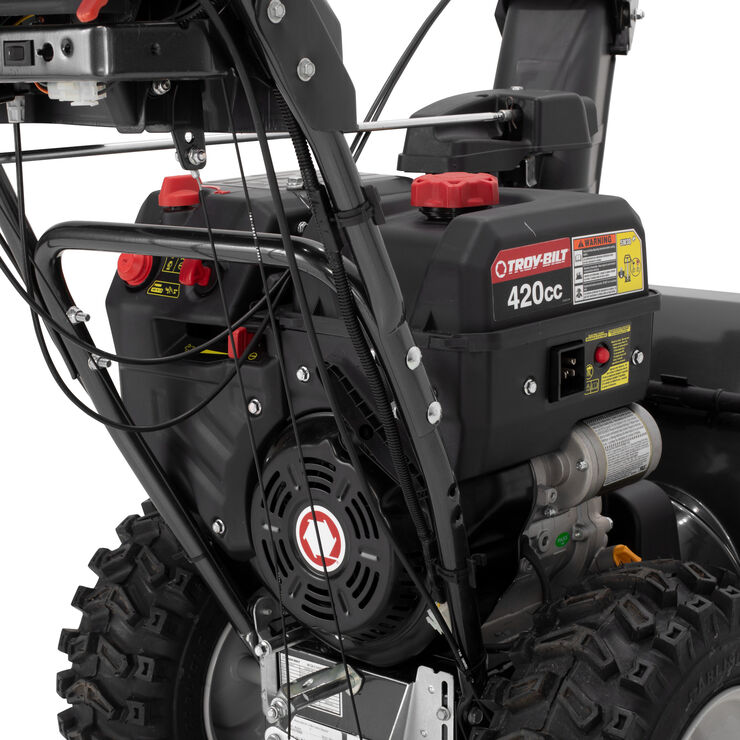

Powered by a reliable Troy-Bilt engine equipped with push-button electric start, eliminating the need to pull-start a cold engine.
Electric Start
Electric start allows you to start the machine with the push of the button, eliminating the need to pull-start a cold engine.
Touch N’ Turn™
Power Steering
Touch N’ Turn™ trigger-controlled power steering allows you to quickly adjust your direction with one finger.
Just One Hand™ Operation
Just One Hand™ operation allows you to lock in your speed and adjust chute controls without disengaging the drive.
Heated Hand Grips
Heated grips provide extra comfort in cold weather.
Self-Propelled Drive
Self-propelled drive with choice of six forward and two reverse speeds.
Minimal Snow Blowback
Extended chute design minimizes blowback of snow discharge on the operator.
In-Dash Headlight
In-dash headlight provides improved visibility in low-light conditions.
Specs & Maintenance
Engine
- Engine Brand Troy-Bilt®
- Engine Model Number 690-WUC
- Engine Displacement 420cc
- Fuel Tank Capacity 5 quarts US / 4.7 L
- Engine Start Recoil and Push-Button Electric
Drive System
- Number of Forward Speeds 6
- Number of Reverse Speeds 2
- Drive Type Friction Disc
- Drive System All-wheel Drive
Controls
- Handle Grip(s) Heated grips
- Chute Rotation Control Remote Overhead Crank
- Chute Pitch Control Remote Single-Lever
- Chute Rotation 200°
- Steering Control Touch N’ Turn™ trigger-controlled
- Operator Control Just One Hand®
Power and Performance
- Clearing Width 30"
- Intake Height 21"
- Number of Stages Three
Dimensions
- Auger Diameter 12"
- Impeller Diameter 12"
- Accelerator Diameter 12"
Specifications
- Tire Size 16" x 6.5"
- Tread Xtrac®
Additional Specifications
- Headlight(s) In-dash LED
- Shave Plate Steel
- Skid Shoes Deluxe Polymer
- Drift Cutters Yes
- Auger Material Serrated Steel
- Chute Material High-Impact Polymer
- Model Number 31CH5EP9B66
Warranty
- Auger Gearbox Warranty 3-Year limited
- Residential Warranty 3-Year limited
- Commercial Warranty No
- Chute Warranty Lifetime limited
Shave Plate Specifications
- Auger Housing Width 30"
Disclaimers
- Specifications Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
- Snow Removal *Results may vary depending on weather and snow conditions
- Xtrac® Tires **Xtrac® is a registered trademark of the Carlstar Group, LLC
Model | Manual | Form Number | |
|---|---|---|---|
| 31CH5EP9B66 | MANL:OPER:31X:500/600/800:NA | ||
| MANL:OPER:31X:500/600/800:NA | 769-26795 | Download | |
| MANL:OPER:BILING:31X:5X/6X/8X: | 769-26467 | Download | |
| MANL:OPER:BILING:MTD ENG:357/4 | 769-25490 | Download | |
| MANL:OPER:BILING:MTD ENG:357/4 | 769-26922 | Download | |
| SHEET:SUP:31:TROY:1X/2X/3X:_US | 769-26491 | Download | |
| SHEET:SUP:31TROY_SNOWBLOWERS:1 | 769-26939 | Download | |
| SHEET:SUP:BILING:EPA:CARB:EXH: | 769-26276 | Download | |
| SHEET:SUP:BILING:EPA:CARB:EXH: | 769-26611 | Download | |
| SHEET:SUP:BILING:EPA:EVP:21-22 | 769-26272 | Download | |
| SHEET:SUP:BILING:EPA:EVP:22-23 | 769-26607 | Download | |
| SHEET:SUP:Warranty_Addendum_In | 769-26830 | Download |
